MEG Regeneration Reboiler Tube Bundle

A MEG (monoethylene glycol) regeneration reboiler tube bundle is a crucial component in a natural gas dehydration system, responsible for heating "rich" MEG to boil off water and impurities, leaving behind "lean," reusable MEG. The tube bundle is where heat is transferred to the fluid, but it is highly susceptible to problems like fouling from salts and corrosion from MEG degradation products like acetate ions.

Function

Heating: The primary function is to transfer heat to the rich MEG solution, typically using steam or a fired heater.

Vaporization: This heat input boils the water and any dissolved volatile hydrocarbons from the rich MEG stream.

Separation: The generated vapor, now free of salts and heavier components, is sent to a distillation column to be purified and recovered as lean MEG.

Key components and challenges

Tube material: Often made of a duplex stainless steel, but the choice of material is critical to avoid corrosion.

Fouling: Scale and salt buildup on the tubes can significantly reduce heat transfer efficiency and can lead to tube blockage.

Corrosion: Accumulation of acetate ions from MEG degradation is a major cause of accelerated corrosion in the reboiler, especially in the presence of other contaminants.

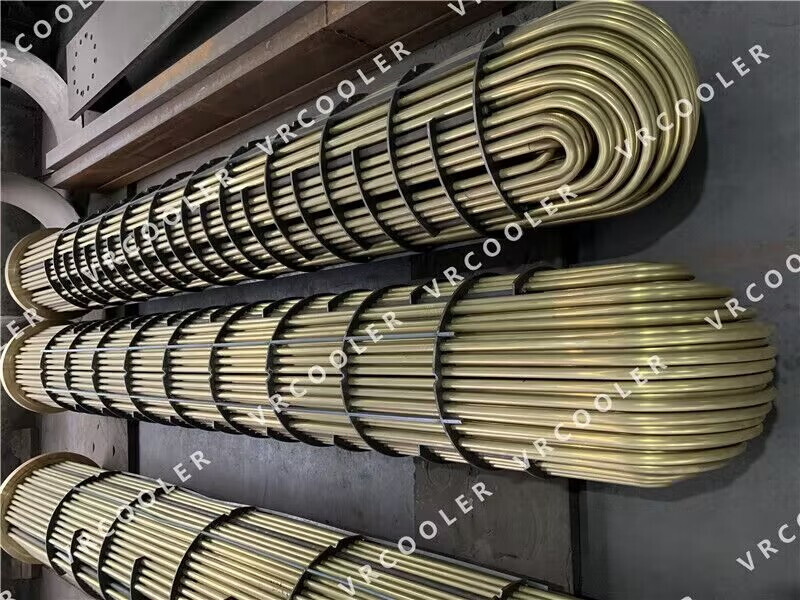

Design: U-tubes are a common configuration, sometimes used in a kettle-type reboiler where the tube bundle is submerged in the liquid for efficient heat transfer and vapor generation.

Mitigation strategies

Pre-treatment: Removing hydrocarbons and other impurities before the rich MEG reaches the reboiler helps reduce fouling and corrosion.

Material selection: Using corrosion-resistant materials and designing for the specific process conditions can prevent failures.

Process control: Maintaining minimum reboiler temperatures helps limit salt buildup and corrosion.

Regular cleaning: Periodic cleaning is necessary to prevent the loss of heat transfer efficiency and tube blockage.
