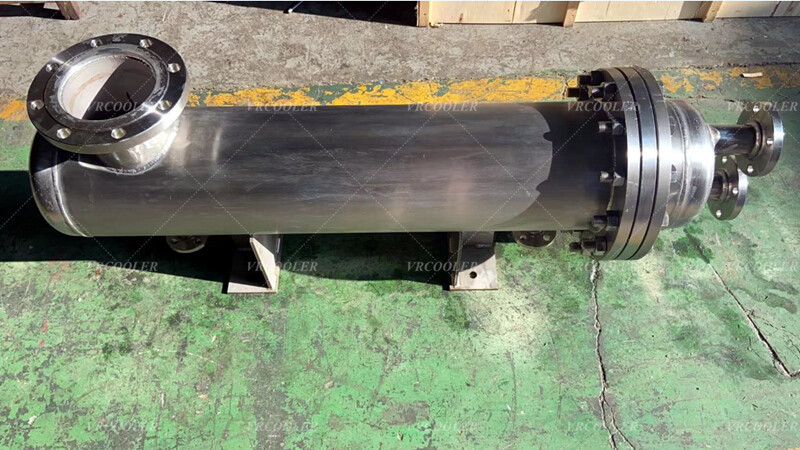

Shell and Tube Heat Exchanger for Caramel Plant

Shell and Tube Heat Exchanger for Caramel Plant

A shell and tube heat exchanger is a common type of heat exchanger used in various industrial applications, including caramel production.

Purpose

Heat Transfer: The primary function is to transfer heat between two fluids without mixing them, which is essential in processes like heating sugar solutions for caramelization.

Design

Shell and Tube Configuration: Consists of a series of tubes, one set (the tubes) carrying one fluid, and the other (the shell) containing another fluid. This design allows for efficient heat exchange.

Materials: Typically constructed from stainless steel or other corrosion-resistant materials to withstand the high temperatures and potential corrosiveness of the caramel ingredients.

Operation

Heating Process: The hot fluid (e.g., steam or hot water) flows through the tubes, while the sugar solution flows around the tubes in the shell. Heat is transferred from the hot fluid to the sugar solution, raising its temperature.

Temperature Control: Temperature sensors and control systems are often employed to maintain optimal heating conditions, ensuring consistent product quality.

Benefits

Efficiency: High thermal efficiency due to a large surface area for heat transfer.

Compact Design: Space-saving design compared to other heat exchanger types, making it suitable for facilities with limited space.

Easy Maintenance: Tubes can be cleaned or replaced individually, facilitating maintenance without requiring complete unit replacement.

Applications in Caramel Production

Preheating Sugar Solutions: Before caramelization, sugar solutions need to be heated to specific temperatures to achieve the desired texture and flavor.

Cooling Process: After caramelization, the product may need to be cooled quickly, requiring a heat exchanger for efficient heat removal.

Maintenance Considerations

Regular Inspections: To prevent fouling, regular cleaning and inspection of the heat exchanger are necessary.

Monitoring: Keeping track of temperature and pressure differentials to ensure optimal performance and identify any potential issues early.
