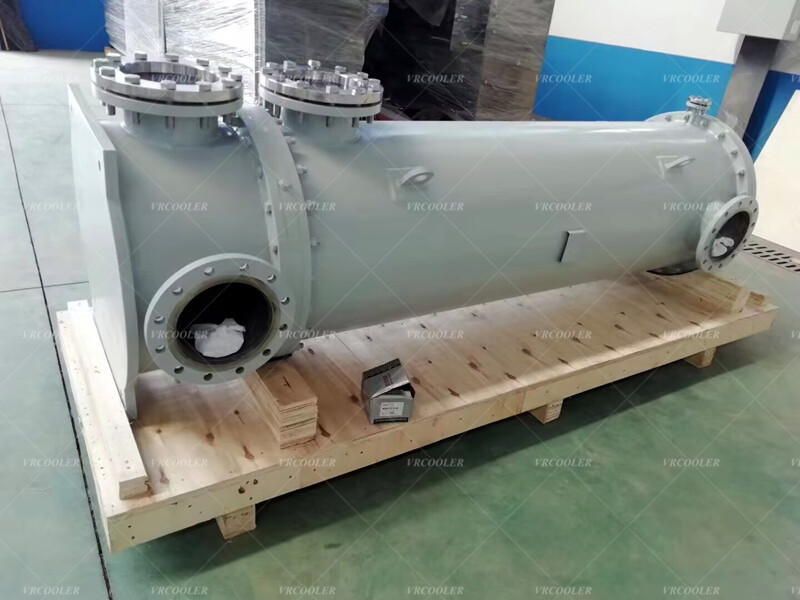

Lube Oil Cooler For Main Engine Automatic

A lube oil cooler for the main engine with automatic functionality is a crucial component in various power - generating and propulsion systems, such as those in ships, large vehicles, and industrial engines.

Function

Temperature Regulation: The primary function of the lube oil cooler is to maintain the lubricating oil at an appropriate operating temperature. During the operation of the main engine, the lube oil absorbs heat generated by friction between moving parts. If the oil temperature gets too high, its viscosity decreases, which can lead to reduced lubrication performance, increased wear and tear on engine components, and potential engine damage. The cooler removes excess heat from the oil to keep it within the optimal temperature range for effective lubrication.

Enhanced Engine Reliability: By ensuring stable oil temperatures, the cooler helps to extend the lifespan of engine components. It reduces the risk of thermal stress on parts, minimizes the formation of sludge and varnish in the oil, and maintains the oil's chemical and physical properties, thus improving the overall reliability and durability of the main engine.

Automatic Features

Temperature - Sensing and Control: The automatic lube oil cooler is equipped with temperature sensors. These sensors continuously monitor the temperature of the lube oil entering and leaving the cooler. Based on the pre - set temperature range, the control system can adjust the cooling capacity of the cooler. For example, if the oil temperature is higher than the set point, the control system may increase the flow rate of the cooling medium (such as water or air) to enhance the cooling effect.

Flow Regulation: It can automatically regulate the flow of lube oil through the cooler. If the engine load changes, resulting in different heat generation rates, the system can adjust the oil flow rate to ensure efficient heat transfer. This helps to maintain a consistent cooling performance under various operating conditions.

Fault Detection and Alarm: The automatic system is often integrated with fault - detection mechanisms. It can detect issues such as blockages in the cooling passages, pump failures, or abnormal temperature variations. When a fault is detected, an alarm is triggered to alert the operators, allowing for timely maintenance and preventing potential engine problems.

Structure and Working Principle

Structure:

Heat Exchanger Core: This is the main part of the cooler, usually consisting of a series of tubes or plates. The lube oil flows through one side of the heat exchanger, while the cooling medium flows through the other side. The design of the heat exchanger maximizes the contact area between the two fluids to facilitate efficient heat transfer.

Pumps and Valves: Pumps are used to circulate the lube oil and the cooling medium. Valves are installed to control the flow rates of both fluids. The control system can adjust the opening and closing of these valves to regulate the flow and cooling capacity.

Control Panel: It houses the control electronics, including the temperature sensors, controllers, and relays. The control panel processes the sensor data and sends commands to the pumps and valves to achieve automatic operation.

Working Principle:

The hot lube oil from the main engine enters the cooler. At the same time, the cooling medium (such as seawater in a ship's engine or freshwater in an industrial setting) is pumped into the cooler. Heat is transferred from the lube oil to the cooling medium through the heat exchanger surface. The cooled lube oil then returns to the engine to continue lubricating the moving parts, while the heated cooling medium is discharged or recirculated through a cooling tower or other cooling devices.

Applications

Marine Engines: In ships, the main engine is a large - power - consuming component. The automatic lube oil cooler is essential for maintaining the engine's performance and reliability during long - distance voyages. It helps to ensure smooth operation in different marine environments, where temperature and sea conditions can vary significantly.

Power Generation: In power plants, whether they are diesel - powered, gas - powered, or steam - powered, the main engines require proper lubrication and temperature control. The automatic lube oil cooler helps to optimize the engine's efficiency and reduce maintenance costs.

Heavy - Duty Vehicles: Large trucks, buses, and construction equipment with powerful engines also rely on lube oil coolers to keep the engines running smoothly. The automatic functionality allows for better adaptation to different driving and operating conditions.
