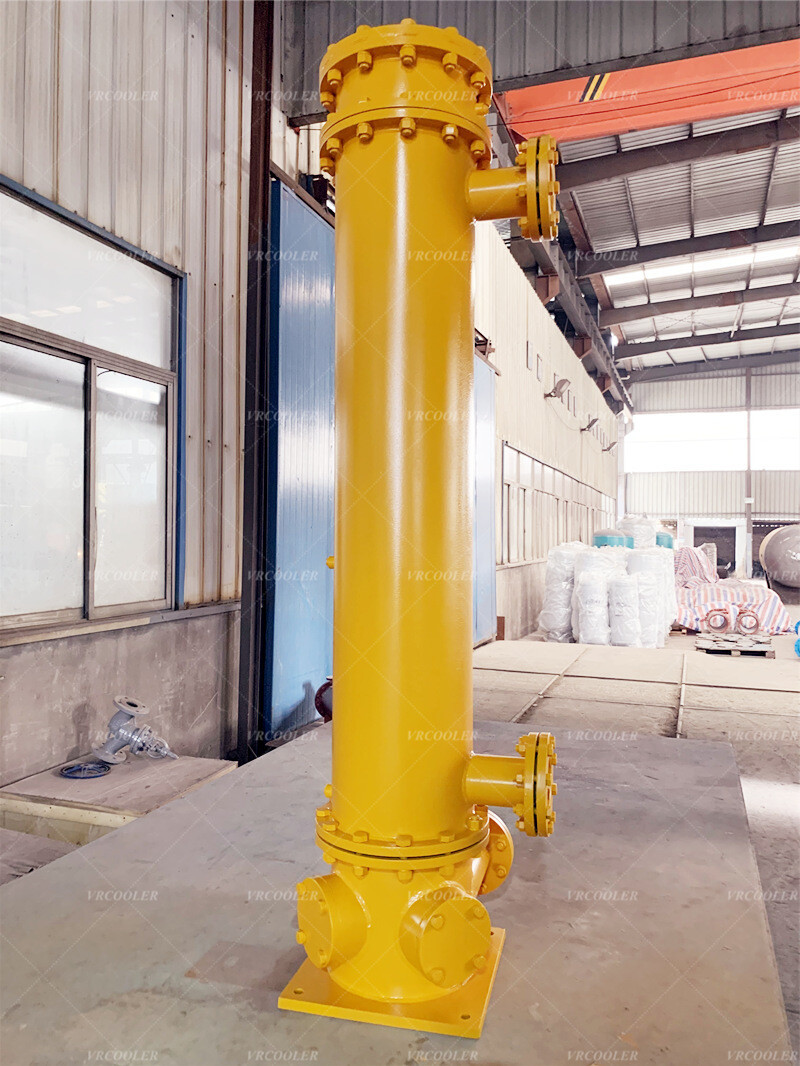

A shell and tube heat exchanger for a chiller system plays a crucial role in the efficient cooling process.

The design of the shell and tube heat exchanger for a chiller system typically involves several important considerations. The number and size of the tubes, as well as the spacing between them, affect the heat transfer rate. For example, a chiller system for a large commercial building might have a heat exchanger with a greater number of smaller diameter tubes to enhance heat exchange.

The material selection is also critical. Stainless steel or copper tubes are commonly used due to their good thermal conductivity and corrosion resistance. Copper tubes, for instance, offer excellent heat transfer properties but might be more susceptible to certain types of corrosion in specific environments.

The shell side configuration, such as the baffle arrangement, influences the fluid flow and heat transfer efficiency. Baffles can be designed to create turbulence and improve heat transfer.

In terms of operation, proper maintenance is essential to ensure the long-term performance of the heat exchanger. Regular cleaning to remove scale and debris buildup helps maintain the heat transfer efficiency.

Another aspect to consider is the pressure drop across the heat exchanger. It needs to be balanced to ensure efficient operation without excessive energy consumption for pumping the fluids.

For instance, in a data center cooling system, a precisely designed shell and tube heat exchanger ensures stable and efficient cooling of the server equipment, maintaining optimal operating conditions.

Overall, a well-designed and maintained shell and tube heat exchanger is vital for the effective functioning of a chiller system.
