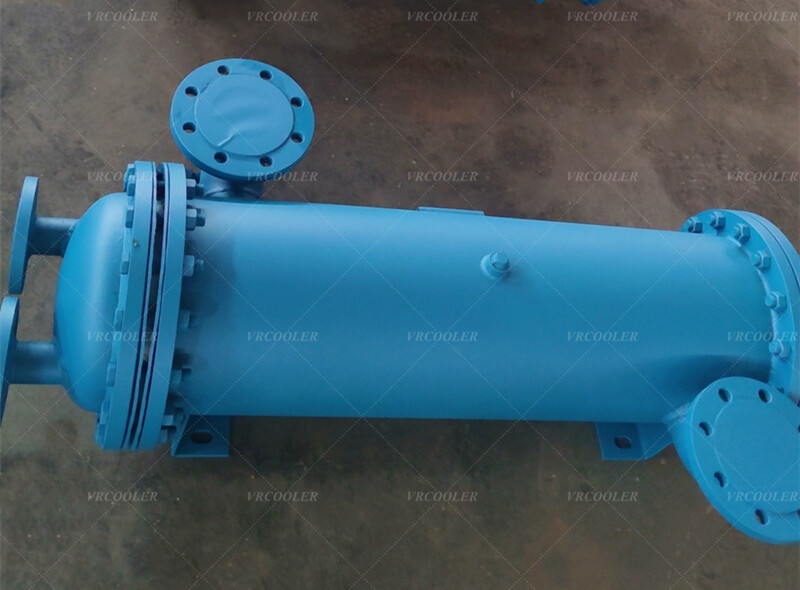

A shell and tube oil cooler is a type of heat exchanger designed to cool oil in various industrial applications. It consists of a series of tubes arranged inside a cylindrical shell, where one fluid (oil) flows through the tubes and another fluid (usually water or air) flows outside the tubes within the shell.

Here’s a detailed overview:

Components

Shell: The outer cylindrical part that houses the tube bundle.

Tube Bundle: A collection of tubes where one fluid (oil) circulates. The tubes can be straight or U-shaped.

Inlet and Outlet Heads: End caps that direct the flow of fluids into and out of the shell and tube bundle.

Baffles: These are used to direct the shell-side fluid flow and enhance heat transfer by increasing turbulence.

Support Plates: Hold the tube bundle in place and prevent excessive vibration.

Working Principle

Heat Exchange: As hot oil flows through the tubes, it transfers heat to the cooler fluid (water or air) flowing around the outside of the tubes.

Counterflow or Parallel Flow: Depending on the design, the two fluids can flow in opposite (counterflow) or the same direction (parallel flow) to enhance heat transfer efficiency.

Applications

Industrial Machinery

Used to cool hydraulic oils in machinery and equipment to maintain optimal operating temperatures.

Automotive Industry

Commonly found in vehicles to cool engine oil, ensuring engine efficiency and longevity.

Power Generation

Used in power plants to cool lubricating oils in turbines and generators.

Marine Applications

Employed in ships to cool engine oil, ensuring reliable operation of marine engines.

Process Industries

Utilized in chemical processing to cool oils and other fluids used in production.
