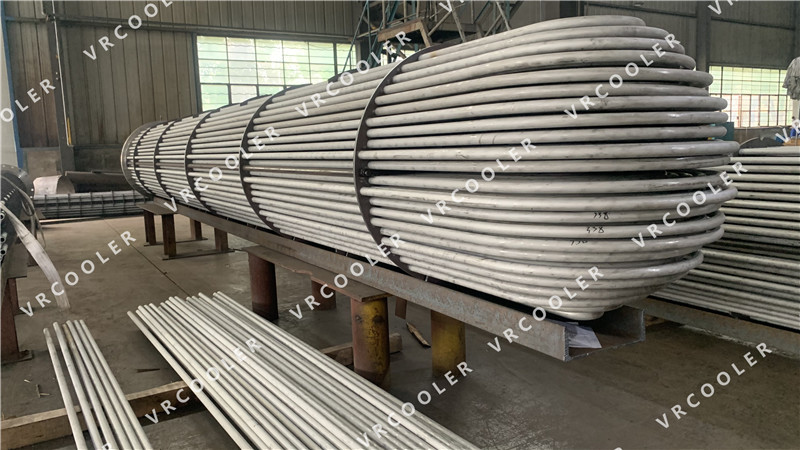

What is an U-Tube Bundle Heat Exchanger?

A U-tube bundle, also known as a U-tube heat exchanger, is a type of heat exchanger that consists of a bundle of U-shaped tubes. The U-tube bundle is commonly used in various industrial applications for transferring heat between two fluids.

The U-tube bundle design allows for efficient heat transfer by maximizing the surface area available for heat exchange. The bundle typically consists of multiple U-shaped tubes, which are usually made of materials such as copper, stainless steel, or other corrosion-resistant alloys. The tubes are bent into a U-shape, forming a hairpin configuration. The open ends of the U-shaped tubes are connected to headers or tube sheets, which facilitate the flow of the two fluids.

One fluid flows through the tubes, while the other fluid flows around the outside of the tubes. Heat is transferred between the two fluids through the tube walls. The U-tube configuration allows for thermal expansion and contraction of the tubes without causing excessive stress on the heat exchanger.

U-tube bundles are commonly used in applications such as HVAC systems, power plants, chemical processes, and refrigeration systems. They are particularly suitable for applications where thermal stresses due to temperature differences between the two fluids need to be accommodated. The U-tube design also allows for easy maintenance and cleaning of the tubes.

Overall, U-tube bundles are versatile heat exchangers that offer efficient heat transfer capabilities in various industrial processes.
