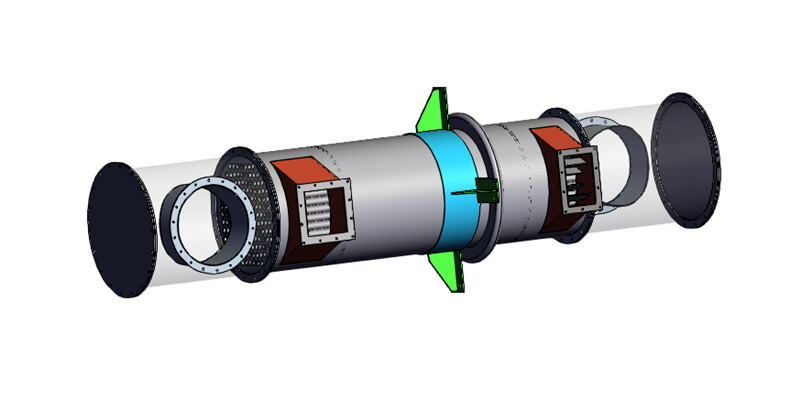

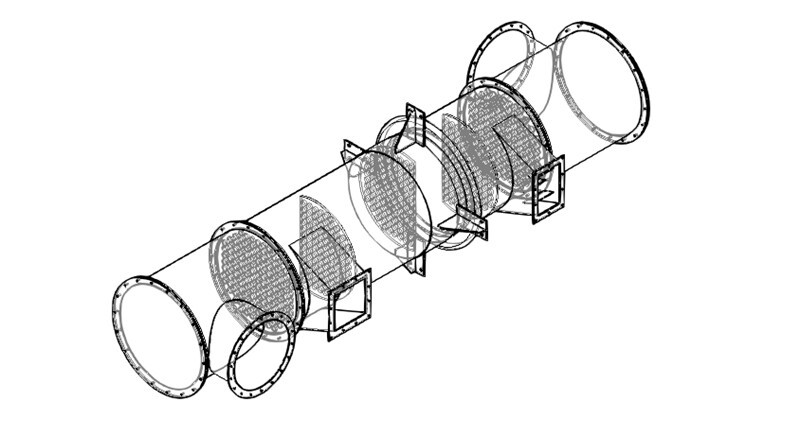

Shell Tube Marine Drain Cooler

Components

Shell: The outer cylindrical casing that holds the coolant.

Tubes: Inside the shell, a series of tubes carry the fluid that needs to be cooled.

End Caps: Seal the ends of the shell and allow for fluid entry and exit.

Functionality

Heat Transfer: Hot fluid enters through one end, transferring heat to the cooler fluid in the tubes.

Flow Arrangement: Can be designed for counterflow or parallel flow to maximize efficiency.

Applications

Marine Engines: Used to cool engine coolant or lubricating oil.

Auxiliary Systems: Helps maintain optimal operating temperatures for various onboard systems.

Benefits

Compact Design: Efficient use of space on ships.

Durability: Designed to withstand harsh marine environments.
