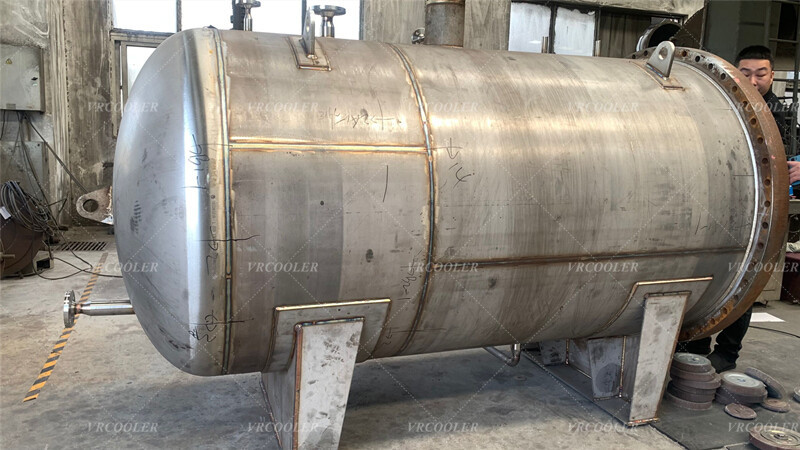

Shell and Tube Heat Exchangers for Heating Palm Oil
Shell and tube heat exchangers consist mainly of a tube bundle and a shell. When used for heating palm oil, two fluids are usually involved in the heat exchange process. One is the heating medium (e.g. steam or hot water) and the other is palm oil. The heating medium flows inside the tube or on the shell side and the palm oil flows on the other side.
Heat is transferred from the heating medium to the palm oil through the tube wall. For example, if steam flows inside the tube, the heat from the steam is transferred to the tube wall, which then transfers the heat to the palm oil on the shell side, thus warming the palm oil.
In the case of palm oil, natural convection or forced convection occurs during its flow on the shell side due to the temperature difference. Natural convection is due to the change in density of palm oil when it is heated, the hot part rises and the cold part falls, thus forming a circular flow. Forced convection is realized by the agitation device or pump installed on the shell side, so that the palm oil can contact with the tube wall more quickly and improve the efficiency of heat exchange.
The structural design of the shell and tube heat exchanger allows it to provide a large heat exchange area. The numerous tubes in the tube bundle increase the area in contact with the palm oil, which facilitates rapid heat transfer. For example, a shell and tube heat exchanger can transfer more heat in the same amount of time than a simple flat plate heating unit, thus heating palm oil more efficiently.
It can be adapted to different heating media and working conditions such as flow rate and temperature of palm oil. Whether using high temperature steam or hot water as the heating medium, shell and tube heat exchanger can effectively exchange heat. And for the change of palm oil flow, through reasonable pipe design and flow control, it can ensure stable heating effect.
The structure of shell and tube heat exchanger is relatively sturdy, and the pipes and shell are usually made of metal materials (such as carbon steel, stainless steel, etc.), which can withstand certain pressure and temperature changes. In the process of heating palm oil for a long time, it is not prone to leakage and other faults, and the maintenance cost is relatively low.
Since palm oil has a certain degree of corrosiveness, especially in high temperature environments, corrosion resistance should be considered when selecting the material of the heat exchanger. Stainless steel is usually used for the tube bundles and shells, such as 304 or 316 stainless steel, in order to prevent the corrosion of palm oil on the equipment and prolong the service life of the equipment.
The flow rate of palm oil and heating medium should be reasonably designed according to the heating demand of palm oil and the supply of heating medium. If the flow rate of palm oil is too large, it may lead to insufficient heating; if the flow rate of heating medium is too small, it will not be able to provide enough heat. It is usually necessary to determine the optimum flow parameters by calculating the load and heat transfer coefficient for heat exchange, etc.
During the heating of palm oil, impurities or certain components in the palm oil may scale on the pipe walls. Fouling reduces the heat exchange efficiency. A filtering device can be installed to remove larger impurity particles before the palm oil enters the heat exchanger. The heat exchanger can also be cleaned periodically, using chemical or mechanical cleaning methods to keep the tube walls clean.
