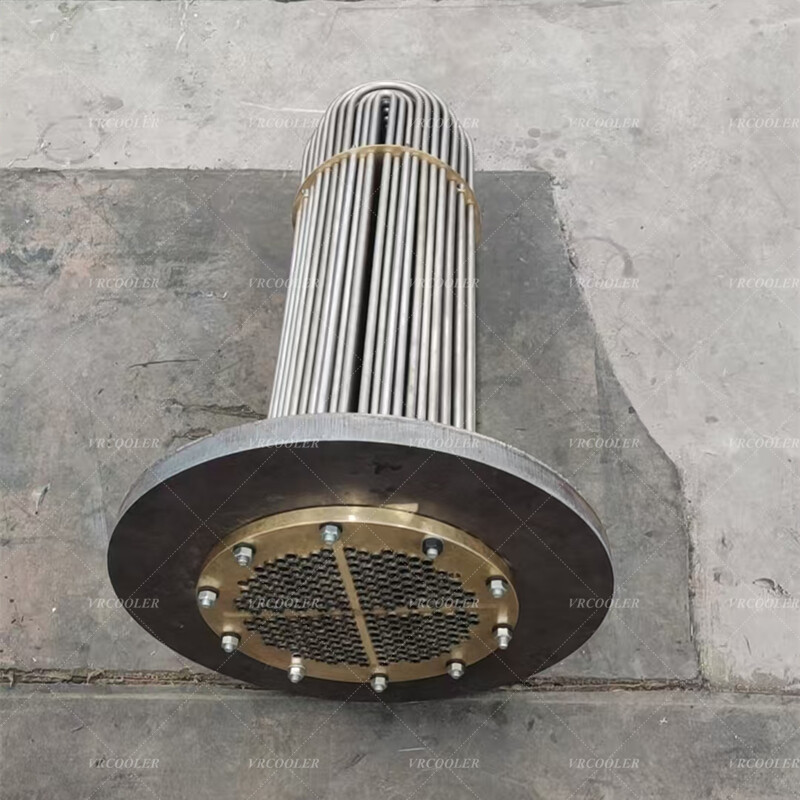

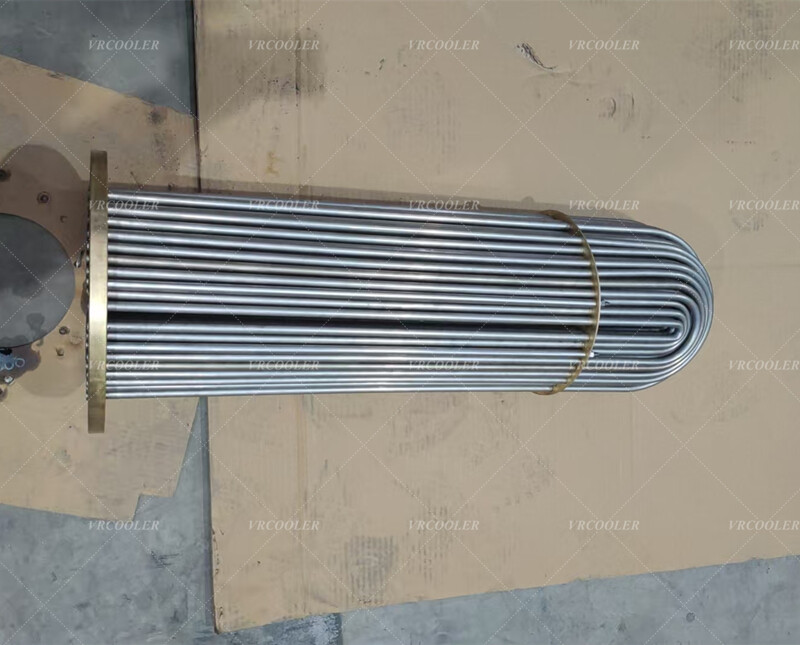

U Tube Bundle

Structure:

A U-tube bundle consists of several tubes bent into a U shape and enclosed within a shell. The design allows for effective heat exchange between two fluids, typically a hot and a cold fluid.

Functionality:

The hot fluid flows through the U-tubes, while the cold fluid flows around the outside of the tubes within the shell. Heat is transferred from the hot fluid to the cold fluid, facilitating efficient thermal exchange.

Key Features:

Compact Design: The U-tube configuration allows for a smaller footprint compared to straight tube designs.

Ease of Maintenance: The U-bend design enables easier access for cleaning and maintenance.

Thermal Expansion: The flexible nature of the U-tube allows for thermal expansion without stress on the tubes.

Applications:

Power Plants: Used for cooling steam or other fluids in thermal power generation.

Chemical Industry: Employed in reactors and distillation columns for heat exchange.

HVAC Systems: Utilized in chillers and heat recovery systems.

Advantages:

High Efficiency: Effective heat transfer due to increased surface area.

Versatility: Can handle a wide range of temperatures and pressures.

Durability: Designed to withstand harsh conditions and corrosive environments.
