Working Principle of Atmospheric Condenser

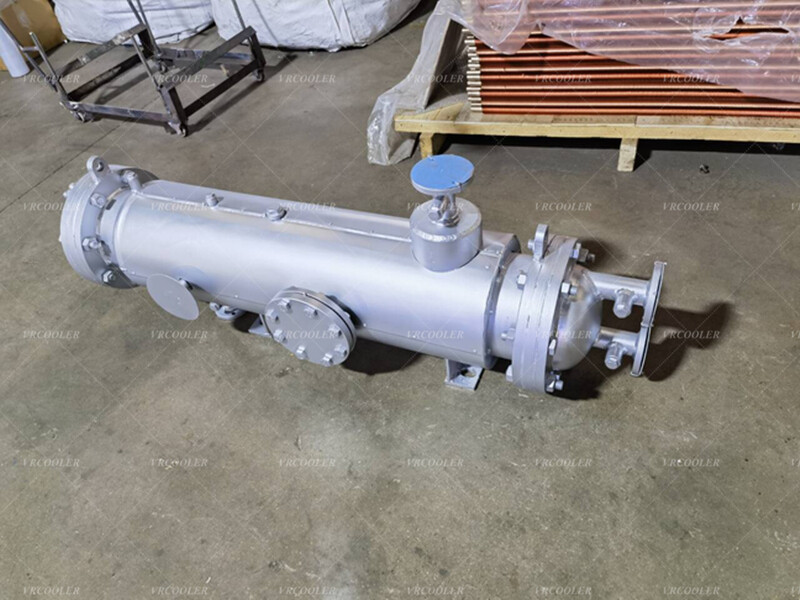

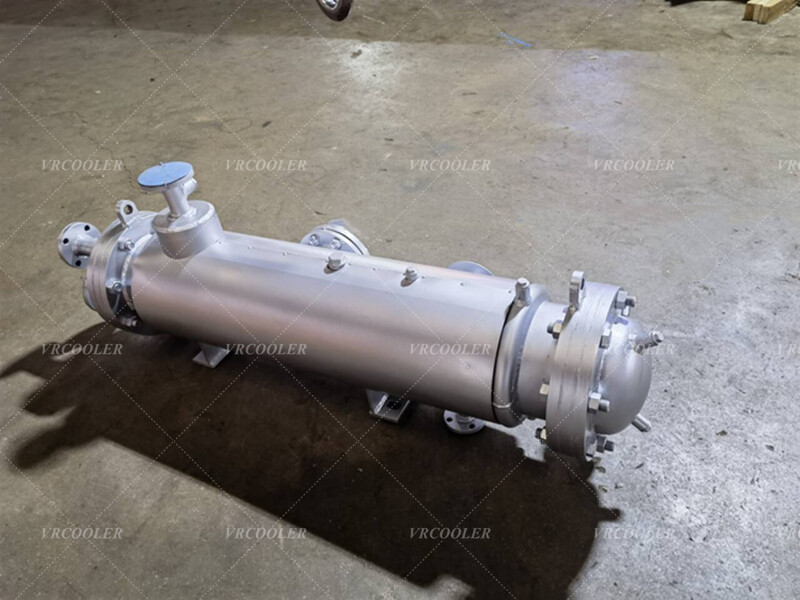

Atmospheric condenser is a kind of heat exchange equipment that utilizes air (usually natural air or forced air) as cooling medium to condense gaseous substance into liquid state. It is widely used in industrial production, refrigeration systems, energy recovery and other fields. Its core function is to take away the heat of the gaseous substance through the natural or forced convection of air, so as to liquefy it by phase change.

The core of the atmospheric condenser is to use air cooling to realize the phase change from gaseous to liquid, the specific process is as follows:

The gaseous substance enters the condenser: the high-temperature gaseous substance to be condensed (e.g., steam, refrigerant, organic substance, etc.) enters the heat exchanger core of the condenser through the pipeline (usually a metal tube with fins or a plate structure).

Air as cooling medium: External air (natural air or fan-driven airflow) flows through the heat exchange surface and exchanges heat with the high-temperature gaseous substance inside the tubes.

Heat transfer and condensation: the gaseous mass transfers heat to the air through the tube wall, reduces its own temperature to the condensation point, gradually liquefies into a liquid, and is eventually discharged through the pipe (e.g., condensate, liquid refrigerant, etc.).

Air emission of heat: After absorbing heat, the air naturally diffuses into the atmosphere, completing the cooling cycle.

Compared to water-cooled condensers (which rely on cooling water as a medium), the key feature of atmospheric condensers is that they do not require an additional source of cooling water, relying only on air, and are therefore suitable for scenarios in which water is scarce or difficult to obtain.

Application Scenarios

Industrial Steam Condensation

Used in the chemical, food processing, and pharmaceutical industries to condense process-generated steam (e.g., secondary vapors after distillation), recover condensate for reuse, and reduce heat emissions at the same time.

Refrigeration & Air Conditioning Systems

The outdoor unit of a small air conditioner or refrigerator is essentially an atmospheric condenser: the high-temperature, high-pressure refrigerant vapors (e.g., Freon) discharged from the compressor are cooled and condensed to a liquid state by air.

Energy and Environmental Protection

In biomass and solar thermal systems, it is used to condense the Organic Rankine Cycle (ORC) process media (e.g., pentane, R245fa) to realize the recovery of low-grade heat energy for power generation.

In wastewater treatment, the condensation of volatile harmful gases (e.g. VOCs) to reduce air pollution.

Agriculture and Food Processing

Used for exhaust gas condensation in drying equipment to recover moisture and heat and reduce energy consumption (e.g. grain drying, fruit and vegetable dehydration).
