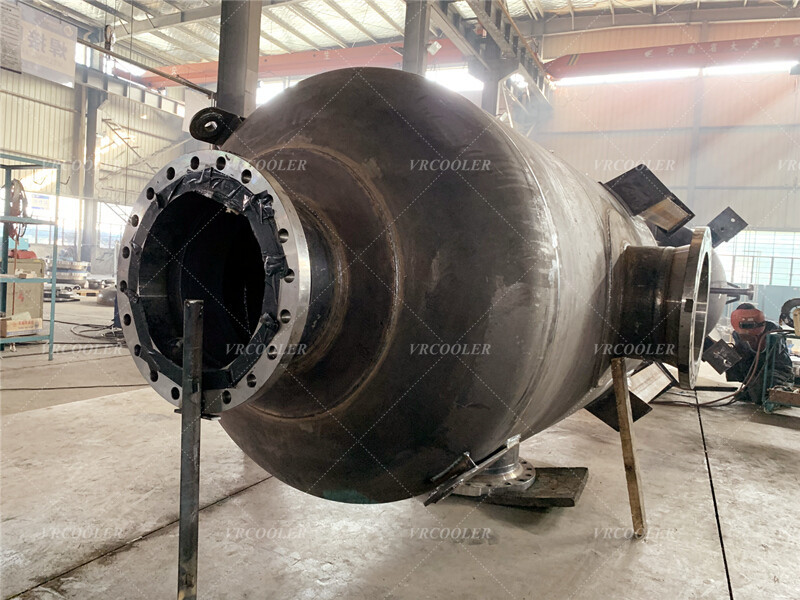

Shell and Tube Heat Exchangers for Cooling Generators

Shell and tube heat exchangers play an important role in cooling equipment such as generators and transformers.

During the operation of generators, a large amount of heat will be generated, which, if not cooled in time, may lead to overheating of the equipment, affecting its performance and life, and may even lead to malfunctions. The shell and tube heat exchanger can effectively take away the heat generated by the generator to ensure that it works within the normal temperature range.

Transformers also generate heat in the core and windings during operation. Shell and tube heat exchangers circulate a cooling medium, such as oil or water, to reduce the temperature of the transformer, guaranteeing its stable operation and the reliability of power transmission.

For example, in a large hydroelectric power plant, the generator is cooled by a shell-and-tube heat exchanger. By passing cooling water through the heat exchanger tubes, the hot oil between the shell and tube is rapidly cooled, enabling the generator to continuously and stably output electricity, improving power generation efficiency and equipment life.

As another example, in a major urban substation, large transformers rely on shell-and-tube heat exchangers for efficient cooling. Even at the peak of power consumption in summer, the transformer can be kept at a suitable temperature, ensuring a stable supply of electricity.
