Shell And Tube Heat Exchanger Basics Explained

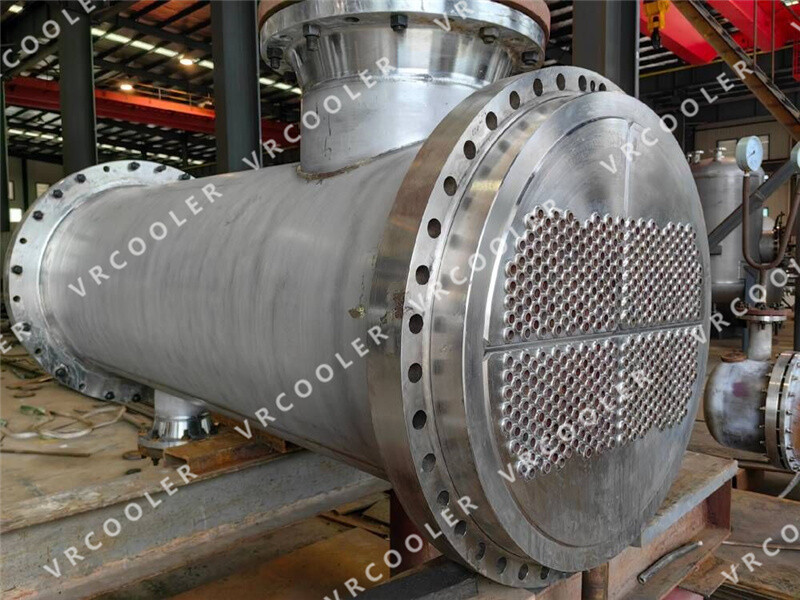

1. Basic Structure

Shell: The outer casing that contains the tube bundle. It holds one of the fluids (usually the one that needs to be cooled or heated).

Tube Bundle: Consists of multiple tubes through which the other fluid flows. The tubes are typically arranged in a parallel pattern.

Tube Sheets: Plates at both ends of the shell that secure the tubes and prevent fluid mixing.

Baffles: Vertical plates inside the shell that direct the flow of the shell-side fluid, enhancing heat transfer by creating turbulence.

2. Working Principle

Fluid Flow: One fluid flows through the tubes (tube side), while the other fluid flows around the outside of the tubes (shell side).

Heat Transfer: Heat is transferred from the hot fluid (inside the tubes) to the cold fluid (in the shell) through the tube walls via conduction. The design can be configured for counterflow, parallel flow, or crossflow to optimize heat exchange efficiency.

3. Design Configurations

Counterflow: The two fluids flow in opposite directions, allowing for maximum temperature difference and higher efficiency.

Parallel Flow: Both fluids flow in the same direction, which generally results in lower thermal efficiency compared to counterflow.

Crossflow: One fluid flows perpendicular to the other, suitable for specific applications where space is limited.

4. Applications

Industries: Commonly used in oil refineries, chemical plants, power generation, food processing, and HVAC systems.

Functions: Effective for cooling hot fluids, heating cold fluids, condensing vapors, and recovering heat from waste streams.

5. Advantages

High Efficiency: Large surface area for heat transfer makes them very effective.

Versatile: Suitable for a wide range of applications and fluid types.

Easy Maintenance: Tube bundles can be easily removed for cleaning or replacement.

Robust Design: Capable of handling high pressures and temperatures.

6. Considerations

Corrosion and Fouling: Materials must be chosen carefully to avoid corrosion and fouling, which can reduce efficiency.

Pressure Drop: Careful design is needed to minimize pressure drop across the heat exchanger.
