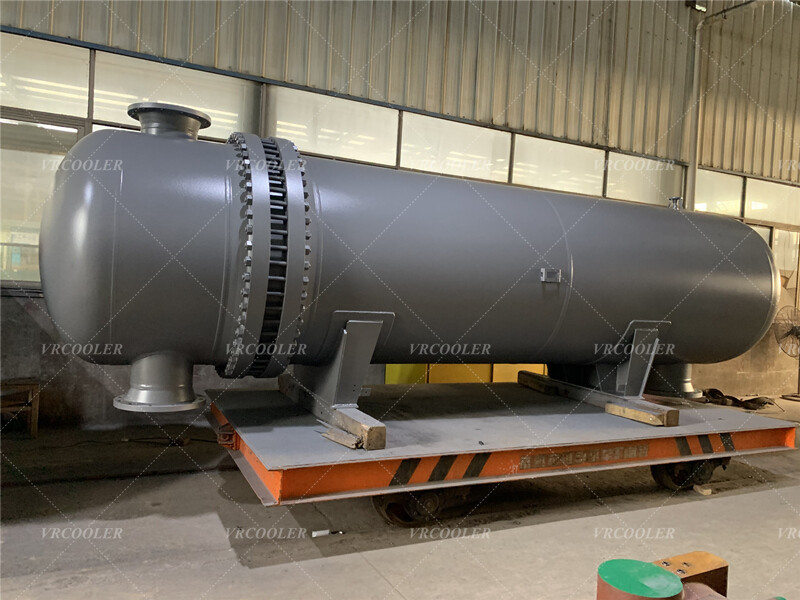

Shell and Tube Heat Exchanger Repair

Repairing a shell and tube heat exchanger is crucial for maintaining its efficiency and preventing failures. Here’s an overview of common repair techniques, issues, and processes involved.

Common Issues

Corrosion: Caused by fluid chemistry or external conditions, leading to material degradation.

Fouling: Accumulation of deposits on tube surfaces, reducing heat transfer efficiency.

Leakage: Fluid leaks due to tube ruptures or failures at the tube sheets.

Mechanical Damage: Damage from pressure surges, vibrations, or external impacts.

Repair Techniques

Cleaning:

Chemical Cleaning: Using solvents or acids to dissolve fouling deposits.

Mechanical Cleaning: Using brushes, scrapers, or high-pressure water jets to remove deposits.

Tube Replacement:

Plugging: If a tube is damaged, it can be plugged to prevent leakage. This is a temporary solution.

Full Replacement: Severely damaged tubes may need to be replaced entirely.

Re-tubing:

Removing the entire tube bundle and replacing it with a new one. This is often done when multiple tubes are damaged or when fouling is extensive.

Welding and Fabrication:

Repair Welding: For small leaks or cracks in the tubes or tube sheets, welding can be performed.

Reinforcement: Adding material to strengthen areas subject to wear or corrosion.

Seal and Gasket Replacement:

Replacing gaskets and seals at flanged connections to prevent leaks.

Inspection and Testing:

Pressure Testing: Checking for leaks after repairs by pressurizing the system.

Ultrasonic Testing: Assessing the integrity of tubes and welds to detect hidden defects.

Repair Process

Shutdown and Safety Precautions:

Ensure the heat exchanger is safely shut down and depressurized. Follow safety protocols for handling fluids.

Disassembly:

Carefully disassemble the heat exchanger, removing end covers and the tube bundle.

Inspection:

Inspect the tubes, tube sheets, and shell for signs of damage, corrosion, or fouling.

Perform Repairs:

Execute the chosen repair techniques (cleaning, replacing tubes, welding, etc.).

Reassembly:

Reassemble the heat exchanger, ensuring all gaskets and seals are correctly installed.

Testing:

Conduct pressure testing and inspect for leaks before returning the unit to service.

Documentation:

Record all repairs made, materials used, and inspection results for future reference.

Preventive Maintenance

Regular Inspections: Schedule routine inspections to identify issues early.

Chemical Treatment: Use chemical inhibitors to reduce corrosion.

Fouling Management: Implement strategies to minimize fouling, such as monitoring fluid chemistry and flow rates.
