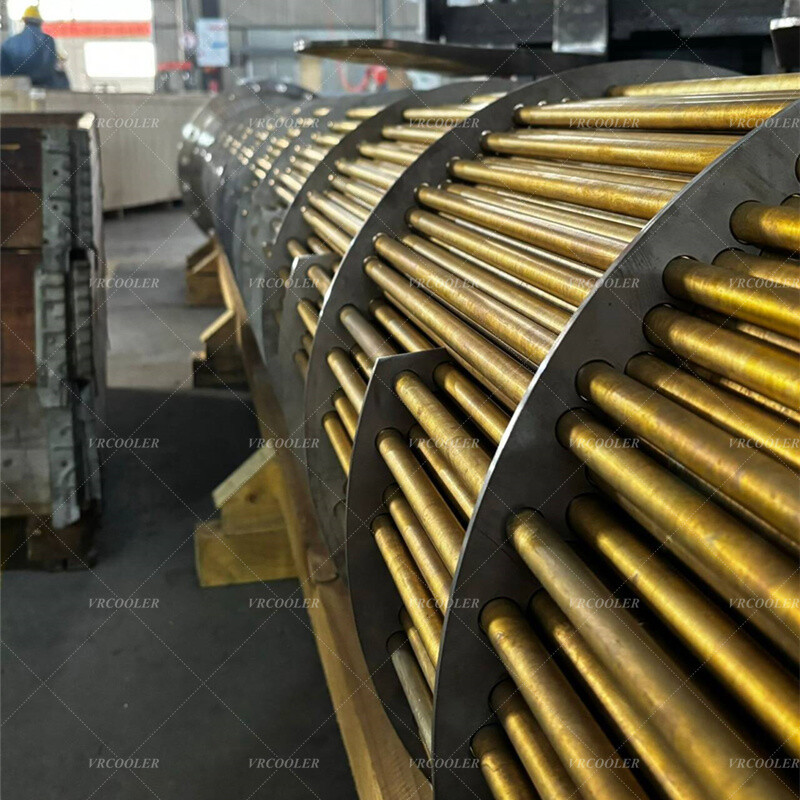

A shell and copper tubes evaporator is a specific type of heat exchanger commonly used in refrigeration and air conditioning systems. This design features a cylindrical shell surrounding a coil or bundle of copper tubes, allowing for effective heat transfer between two fluids.

What is a Shell and Copper Tubes Evaporator?

In this type of evaporator, the refrigerant flows through the copper tubes, while another fluid (usually air or water) flows over the outside of the tubes within the shell. The design promotes efficient heat exchange as the refrigerant evaporates and absorbs heat from the surrounding fluid.

How It Works

Refrigeration Cycle:

The shell and copper tubes evaporator is part of a vapor-compression refrigeration cycle. The refrigerant enters the evaporator as a low-pressure liquid.

Heat Absorption:

Warm fluid (air or water) flows over the outside of the copper tubes. As the fluid passes, it transfers heat to the refrigerant inside the tubes.

The heat absorption causes the refrigerant to evaporate, changing from a liquid to a gas, which cools the fluid around the tubes.

Flow Arrangement:

The design can be configured in various ways, such as counterflow or parallel flow, to optimize heat transfer efficiency based on the specific application.

Benefits

Effective Heat Transfer: Copper has excellent thermal conductivity, which enhances the heat exchange efficiency between the refrigerant and the surrounding fluid.

Corrosion Resistance: Copper is resistant to corrosion, making it suitable for applications involving moisture or varying chemical environments.

Compact Design: The shell and tube configuration allows for a compact design, making it suitable for use in limited spaces.

Ease of Maintenance: This type of evaporator is generally easier to clean and maintain compared to other designs, especially if the tubes are removable.

Applications

Refrigeration Systems: Commonly used in commercial and industrial refrigeration systems, including walk-in coolers and freezers.

Air Conditioning: Employed in HVAC systems to provide cooling by removing heat from indoor air.

Process Cooling: Used in various industrial processes where temperature control is essential, such as in food processing and chemical manufacturing.

Chilled Water Systems: Often found in systems that circulate chilled water for cooling applications.
