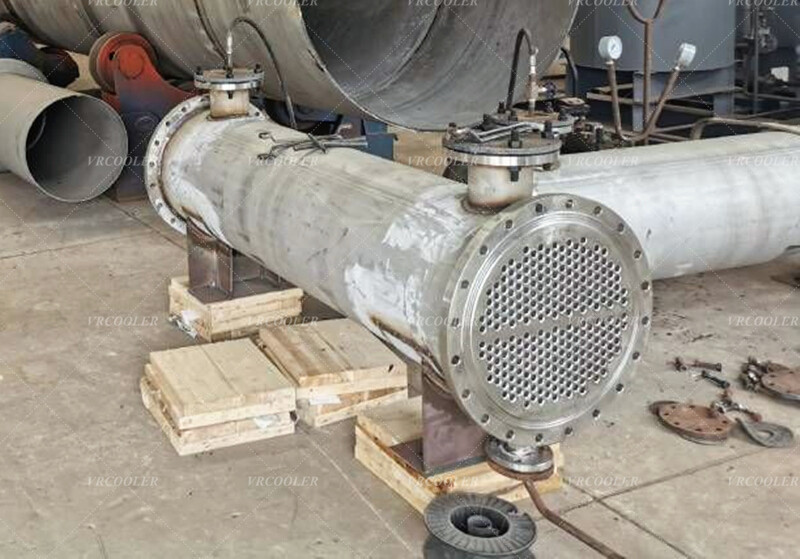

A tube bundle water–oil heat exchanger is a shell-and-tube design where oil flows through a bundle of tubes while cooling water circulates around the outside of the tubes (inside the shell). The counterflow or parallel-flow arrangement enables effective heat transfer from hot oil to the cooling water.
The core component—the tube bundle—is removable, allowing convenient inspection, cleaning, or replacement without dismantling the entire shell.
Key Features and Advantages
1. High Heat Transfer Efficiency
Optimized tube geometry (smooth or finned tubes) improves the surface area for heat exchange.
Turbulent water flow enhances thermal performance, even under varying load conditions.
2. Reliable Temperature Control
Maintains oil temperatures within safe operating limits, helping:
Protect bearings, gears, and rotating equipment
Preserve lubrication quality
Extend equipment lifespan
3. Easy Maintenance with Removable Tube Bundle
Simple pull-out tube bundle design
Easy mechanical or chemical cleaning
Minimal downtime during servicing
4. Rugged Construction for Demanding Environments
Available in carbon steel, stainless steel, or copper alloy materials depending on water quality and oil type.
Designed to withstand high pressures and temperatures in industrial service.
Typical Applications
Tube bundle water–oil heat exchangers are widely used in:
● Power Generation
Generator lube-oil cooling
Turbine oil systems
Transformer oil cooling
● Petrochemical & Refining
Hydraulic oil cooling
Compressor oil systems
Process oil thermal management
● Industrial Machinery
Extruder systems
Gearboxes and heavy-duty transmissions
Injection molding machines
● Marine & Offshore
Engine oil cooling
Hydraulic and stern tube oil temperature regulation
Why Choose Tube Bundle Heat Exchangers for Oil Cooling?
Proven, long-life thermal solution
High efficiency with low operating cost
Suitable for continuous 24/7 operation
Easy integration into existing cooling loops
Service-friendly—minimizing plant downtime
These systems are dependable workhorses for industrial cooling and remain the standard for oil-to-water thermal exchange.
