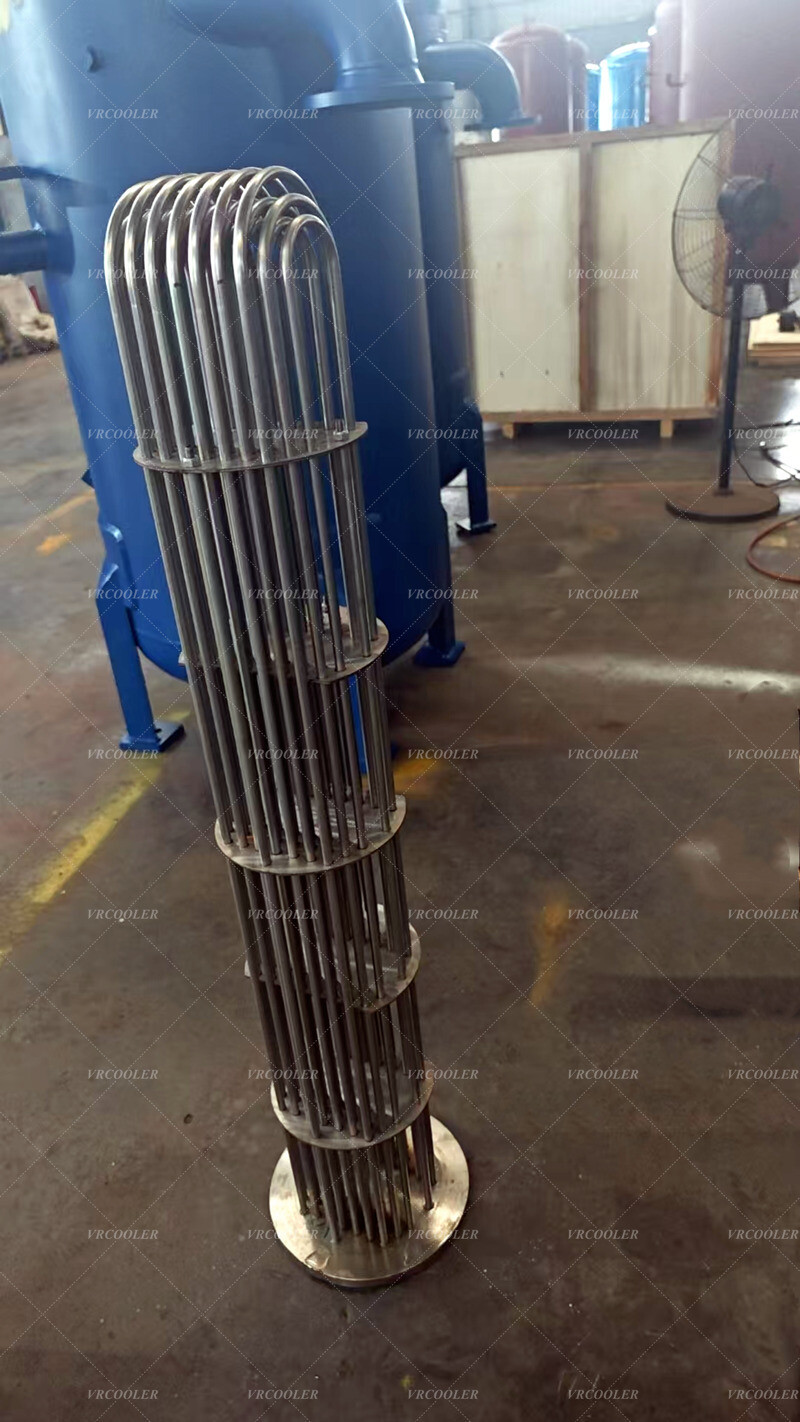

U-tube bundle for Heat Exchanger

U-tube bundle is a specialized tube configuration used in shell-and-tube heat exchangers, valued for its ability to handle thermal expansion and harsh operating conditions. Its unique U-shaped design makes it ideal for applications with high temperature differentials, corrosive fluids, or high pressure—common in industries like oil and gas, chemical processing, and power generation.

Working Principle

In a U-tube heat exchanger:

Tube-side fluid (e.g., a process fluid needing heating or cooling) flows into the straight end of a U-tube, travels through the U-bend, and exits through the adjacent straight end (both connected to the same tubesheet).

Shell-side fluid (e.g., a heating/cooling medium like steam, hot oil, or coolant) circulates around the U-tubes, guided by baffles. Heat transfers through the tube walls between the two fluids.

The U-bend allows the tubes to expand or contract freely as temperatures change, avoiding thermal stress that could crack or damage rigidly fixed tubes.

Applications

U-tube bundles are preferred in scenarios demanding durability, thermal flexibility, and resistance to harsh conditions:

Oil & Gas: Crude oil cooling, refrigerant condensation, or heat recovery in distillation units (handles high pressure and hydrocarbon fluids).

Chemical Processing: Heating/cooling corrosive solvents, acids, or reactive chemicals (resists chemical attack).

Power Generation: Cooling turbine lube oil, preheating boiler feedwater, or condensing steam (handles high temps and pressure fluctuations).

Marine & Offshore: Seawater cooling systems (using Cu-Ni or 316 stainless steel to resist saltwater corrosion).
