A tubular CO2 condenser is a piece of equipment used in various industrial processes, particularly in applications where carbon dioxide (CO2) needs to be condensed from a gas to a liquid state. The condensation process involves cooling the CO2 gas to below its critical temperature and pressure, causing it to change into a liquid form.

Purpose:

The main purpose of a tubular CO2 condenser is to efficiently cool and condense gaseous carbon dioxide into its liquid form. This liquid CO2 can then be stored, transported, or used in various industrial processes such as food and beverage production, chemical processing, refrigeration, and more.

Construction:

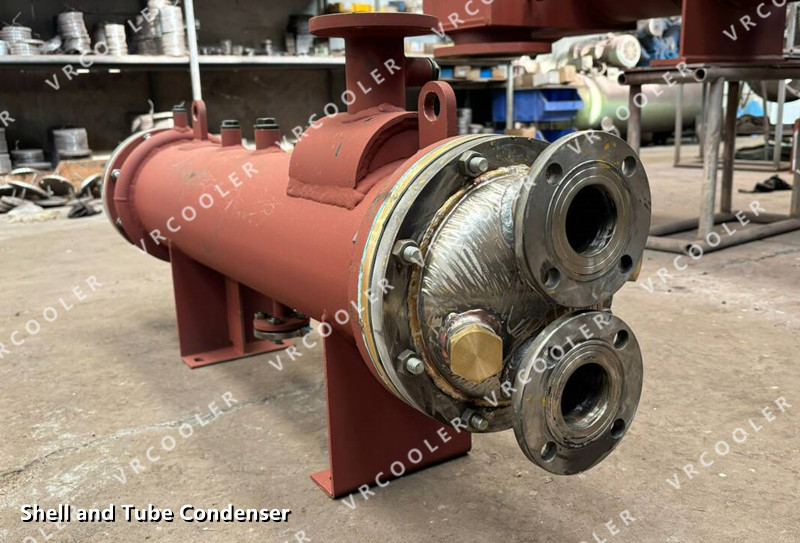

A tubular CO2 condenser typically consists of a series of tubes arranged within a shell. The shell is where the gaseous CO2 flows, while the tubes are where the cooling medium (often a refrigerant or chilled liquid) flows. The design is such that the heat exchange between the CO2 and the cooling medium can take place effectively.

Working Principle:

Flow of Gaseous CO2: The gaseous CO2 enters the condenser through an inlet. It then flows through the tubes, which are designed to maximize surface area contact between the CO2 and the tube walls. This allows for efficient heat transfer.

Cooling Medium: At the same time, a cooling medium (such as a refrigerant) flows around the outside of the tubes within the shell. The cooling medium absorbs the heat from the CO2, causing the CO2 to lose thermal energy.

Condensation: As the CO2 loses heat, it begins to condense into a liquid state. This liquid CO2 collects at the bottom of the condenser, where it is usually drained or pumped out for further processing or storage.

Heat Exchange: The heat absorbed by the cooling medium raises its temperature. The heated cooling medium then exits the condenser through an outlet. It can be sent to a heat exchanger or another part of the system where the heat is dissipated or utilized.

Advantages:

Efficient Condensation: Tubular CO2 condensers are designed for efficient heat transfer, allowing for quick and effective condensation of CO2.

Compact Design: They can be designed to be relatively compact while still providing ample surface area for heat exchange.

Versatility: These condensers can be used in various industrial processes where CO2 needs to be condensed.

Applications:

Food and Beverage Industry: For carbonation of beverages, such as soda and beer.

Chemical Processing: Used in the production of chemicals where liquid CO2 is needed.

Refrigeration: CO2 is commonly used as a refrigerant, and condensers are a key component of CO2 refrigeration systems.

Oil and Gas Industry: Extraction and transportation of CO2 for various processes.
