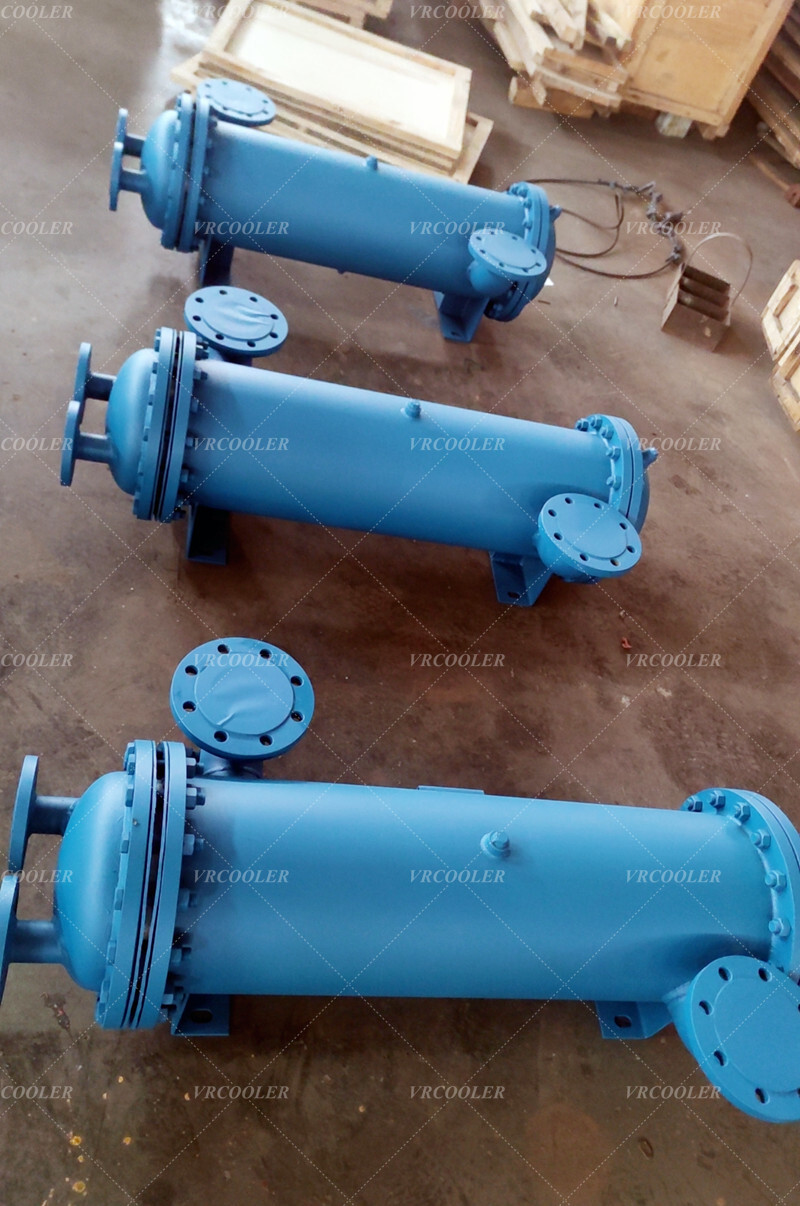

Shell and tube heat exchangers are commonly used in chillers for efficient heat transfer between the refrigerant and a secondary fluid. Here's an overview of their role in chillers:

Function in Chillers:

In a chiller, the shell and tube heat exchanger serves as the condenser or evaporator, depending on the refrigeration cycle.

As Condenser:

When functioning as a condenser, the hot refrigerant gas from the compressor enters the shell side of the heat exchanger.

The secondary fluid, usually water or a glycol solution, flows through the tubes.

Heat is transferred from the refrigerant to the cooling fluid, causing the refrigerant to condense into a liquid.

The condensed refrigerant then returns to the expansion valve to start the cycle again.

As Evaporator:

As an evaporator, the low-pressure refrigerant liquid enters the tubes.

The secondary fluid, which is being cooled, flows over the shell side.

Heat from the secondary fluid is absorbed by the refrigerant, causing it to evaporate and turn into a gas.

The vaporized refrigerant is then drawn back into the compressor to continue the refrigeration cycle.

Advantages in Chillers:

Shell and tube heat exchangers offer several advantages for chillers:

High Heat Transfer Efficiency:

The large surface area provided by the tubes and the close proximity of the two fluids allow for effective heat transfer.

Baffles and flow arrangements can be designed to optimize heat transfer and minimize pressure drop.

Durability and Reliability:

Constructed with sturdy materials, shell and tube heat exchangers can withstand the high pressures and temperatures associated with refrigeration systems.

They are less prone to damage from vibrations or thermal stresses compared to some other types of heat exchangers.

Easy Maintenance:

The tubes can be easily accessed for cleaning or replacement if necessary.

In case of a leak, it is often possible to isolate and repair individual tubes without having to replace the entire heat exchanger.

Versatility:

Shell and tube heat exchangers can be designed to handle a wide range of fluid flow rates, temperatures, and pressures.

They can be customized to fit different chiller sizes and applications.

In summary, shell and tube heat exchangers play a crucial role in chillers by providing efficient heat transfer, durability, and ease of maintenance. Their design and performance characteristics make them a popular choice for many refrigeration applications.
